Markdown Syntax

Nearly all Markdown elements are supported, incl. block quotes, code blocks and even indented code blocks. For more information on Markdown syntax, see Markdown Cheat Sheet.

Images

As of version 1.4.0 Voile supports images. Image syntax follows the standard Markdown syntax with an additional features. Images are always rendered in the middle of the topic.

![Alternative text](image-source)

An image can be sourced from multiple locations:

Resource asset; all images located in the Common/ resource
File system image; images that are located in mods/IwakuraEnterprises_Voile/ and/or relative to server topic file.
Online image; any online image that can be downloaded.

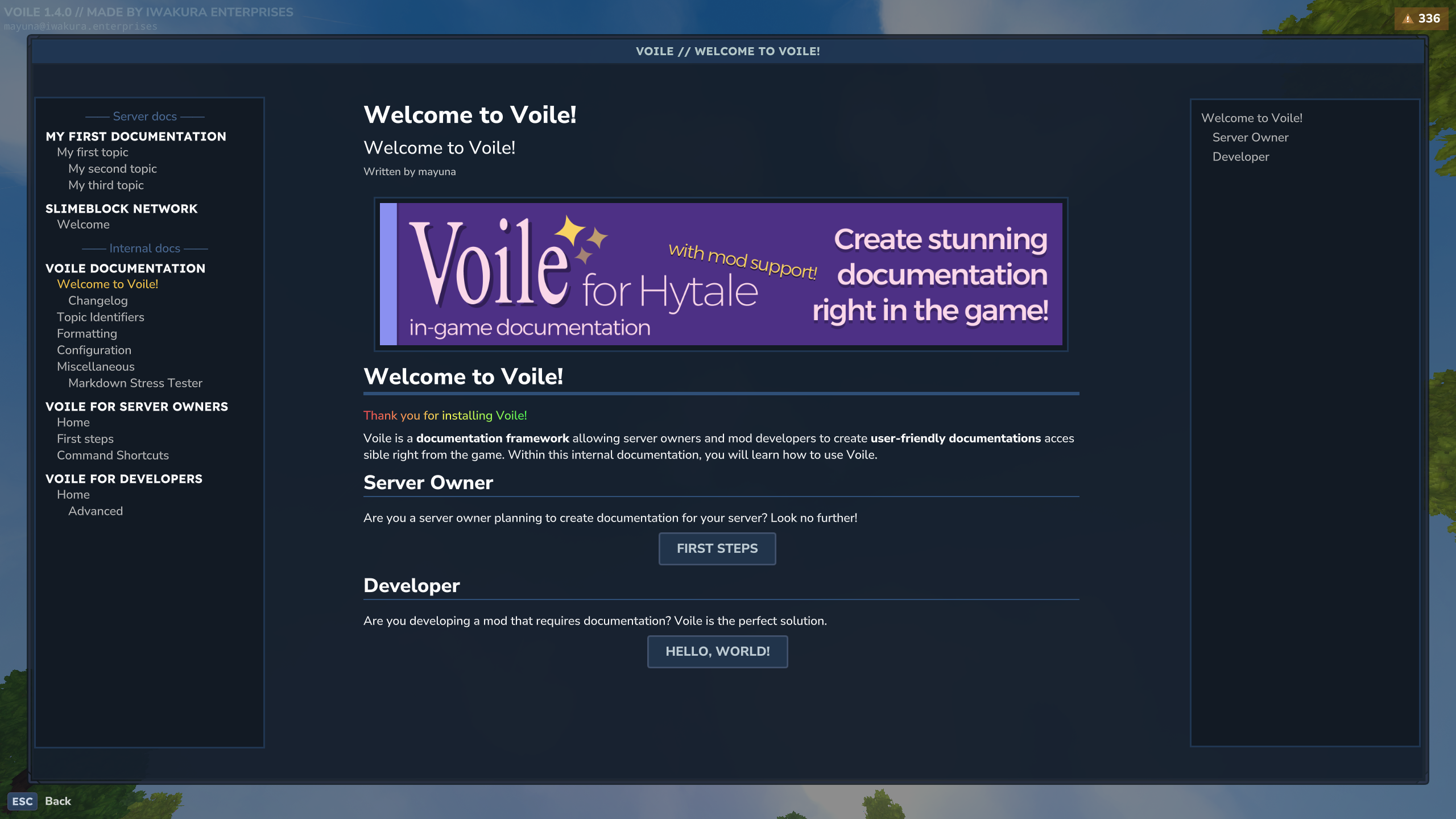

![Voile Banner](UI/Custom/Docs/Images/voile_banner.png)

If image fails to load or the runtime images are disabled in the configuration, the "Image not found" and "Images are disabled" images will be shown.

Image resizing

Additionally, you may also override image's resolution. This can be done in the [] block by specifying {widthxheight} at the end of the alternative text.

![Alternative text {300x200}](image-source)

The example will resize the image to 300 pixels of width and 200 pixels of height. You may also specify 0 as one of the sizes, Voile will resize the image with respect to the aspect ratio.

![Alternative text {300x0}](image-source)

This example will show image rescaled to 300 pixels of width with respect to its aspect ratio.

One paragraph, multiple images

Voile's Markdown renderer supports multiple images in one paragraph.

![Image 1](image-source) ![Image 2](image-source)

![Image 1](image-source)
![Image 2](image-source)

This example will show two rows of images.

Image sources

Resource assets

You may reference any images that are in the Common/ resources. You must provide fully qualified path to the image's resource in order to be properly displayed, omitting the Common/ directory.

![Voile Banner](UI/Custom/Docs/Images/voile_banner.png)

File system image

You may also reference any image located in the mods/IwakuraEnterprises_Voile/ directory. Voile first looks for images relative to the topic's file and then checks from the root of its plugin data directory.

For example, you may have this kind of structure:

mods/IwakuraEnterprises_Voile/
  documentation/
    ServerDocs/
      my-topic.md
      topic-images/
  weapons/
    misc/

When referencing the welcome-banner.png from my-topic.md, you may reference the file with two ways:

topic-images/welcome-banner.png-> relative to the my-topic.md
documentation/ServerDocs/topic-images/welcome-banner.png-> absolute path starting in the mods/IwakuraEnterprises_Voile/ directory.

The other image in the example can be referenced in these two ways:

../../weapons/misc/weapon.png
weapons/misc/weapon.png

Online images

You may also reference online image. This is done by specifying the URL to the image. The URL must start with http or https, otherwise it won't be treated as an online image.

The URL must point directly to the image, so for example https://i.imgur.com/image-id.jpeg will download the image from imgur.

Online images are downloaded to mods/IwakuraEnterprises_Voile/runtime_images/ and are subject to eventual deletion, either when starting the server or when their TTL expires (defaults to one day). See Configuration topic for more info.

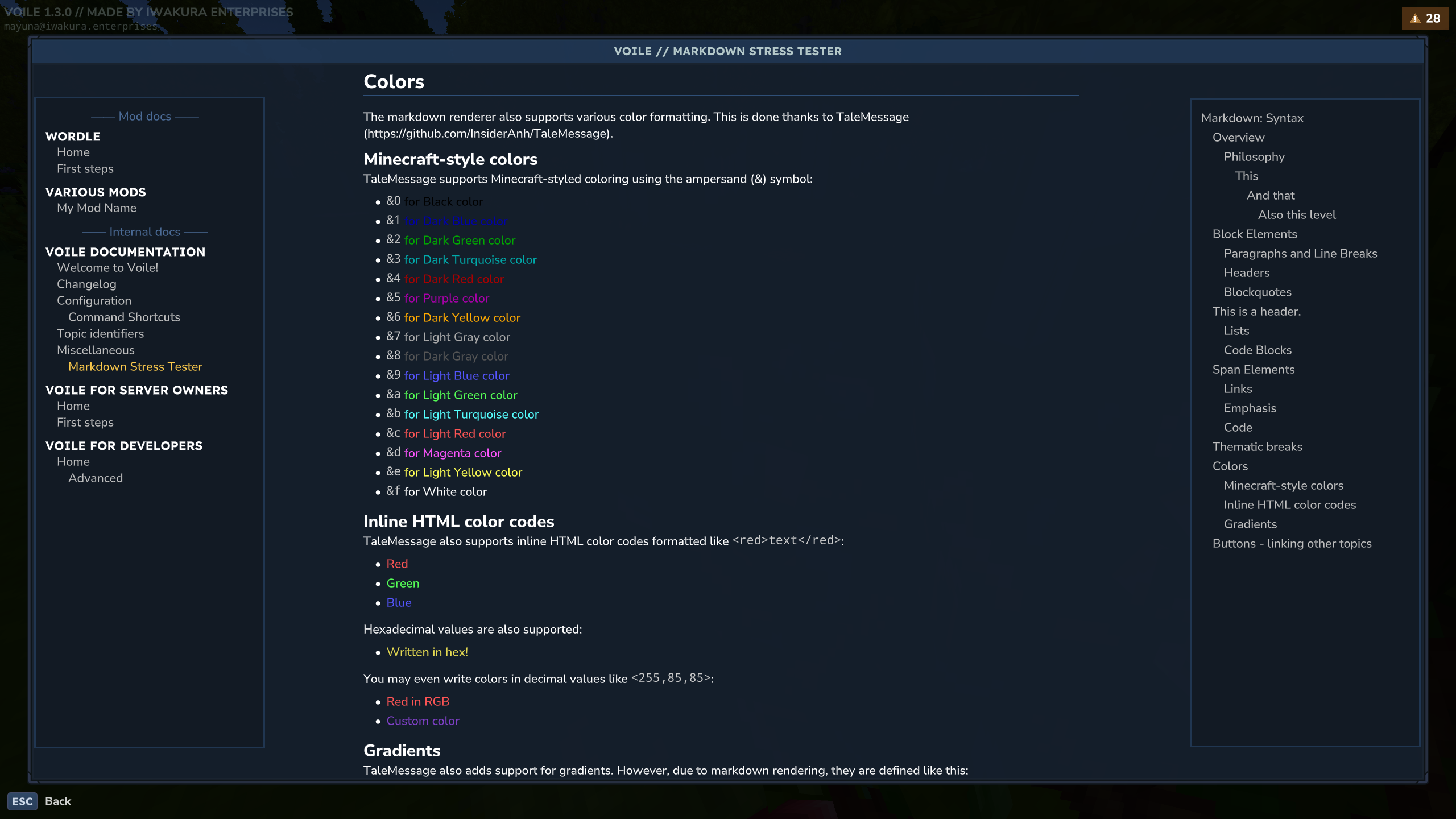

Colors

The markdown renderer supports various color formatting. This is done thanks to TaleMessage.

Minecraft-style colors

TaleMessage supports Minecraft-styled coloring using the ampersand (&) symbol:

&0 for Black color
&1 for Dark Blue color
&2 for Dark Green color
&3 for Dark Turquoise color
&4 for Dark Red color
&5 for Purple color
&6 for Dark Yellow color
&7 for Light Gray color
&8 for Dark Gray color
&9 for Light Blue color
&a for Light Green color
&b for Light Turquoise color
&c for Light Red color
&d for Magenta color
&e for Light Yellow color
&f for White color

Inline HTML color codes

TaleMessage also supports inline HTML color codes formatted like <red>text</red>:

<red>Red</red>
<green>Green</green>
<blue>Blue</blue>

Hexadecimal values are also supported:

<#e5da52>Written in hex!</#e5da52>

You may even write colors in decimal values like <255,85,85>:

<255,85,85>Red in RGB</255,85,85>
<128,64,200>Custom color</128,64,200>

Gradients

TaleMessage also adds support for gradients. However, due to the Markdown rendering, they are defined like this:

<gradient data="red:yellow:green:blue:purple">Text in gradient color!</gradient>

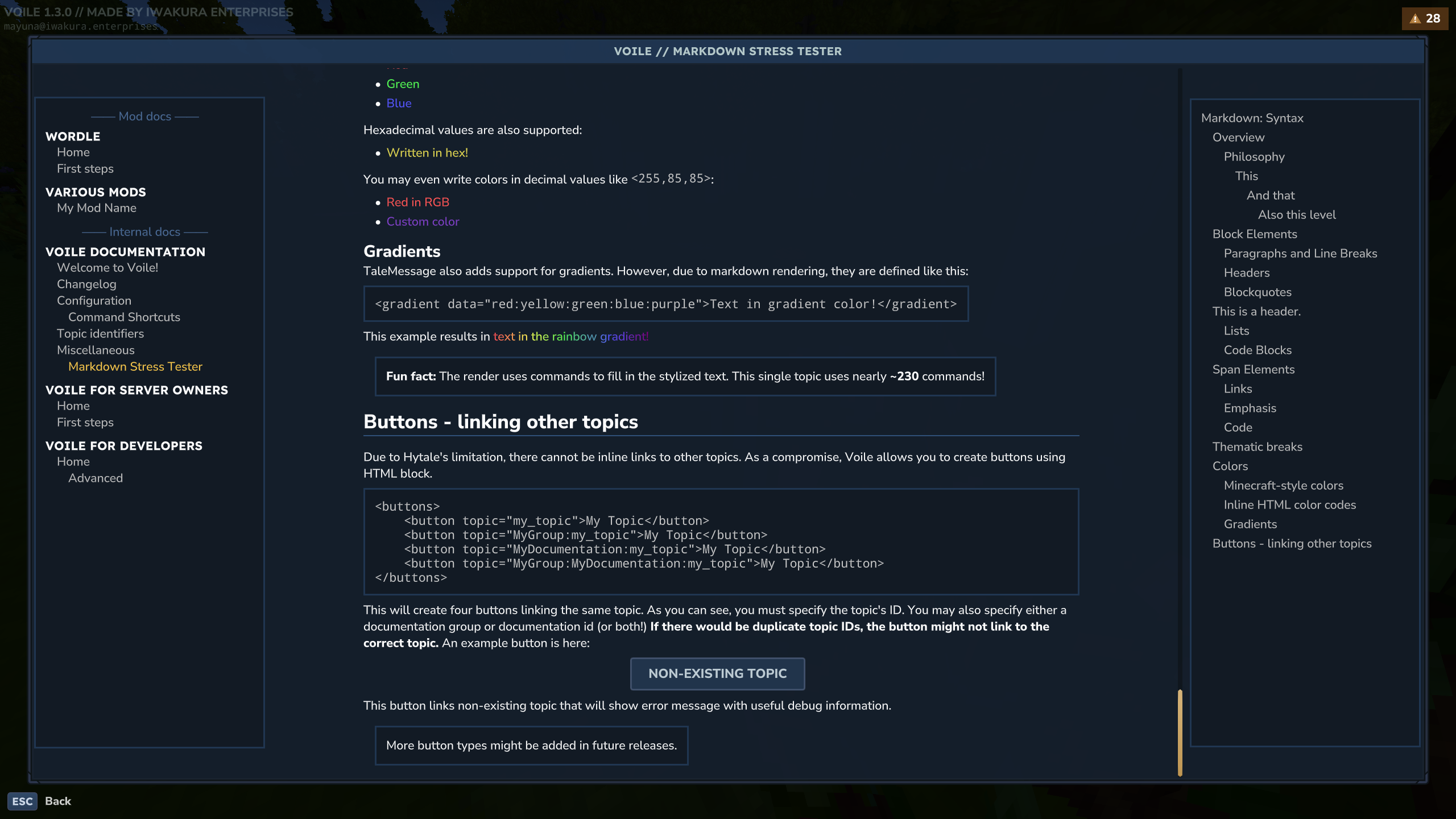

Buttons - linking other topics

Due to Hytale's limitation, there cannot be inline links to other topics. As a compromise, Voile allows you to create buttons using HTML block.

<buttons>
    <button topic="my_topic">My Topic</button>
    <button topic="MyGroup:my_topic">My Topic</button>
    <button topic="MyDocumentation:my_topic">My Topic</button>
    <button topic="MyGroup:MyDocumentation:my_topic">My Topic</button>
</buttons>

This will create four buttons linking the same topic. As you can see, you must specify the topic's ID. You may also specify either a documentation group or documentation id (or both!) If there would be duplicate topic IDs, the button might not link to the correct topic.
